Step 3 Your Basket

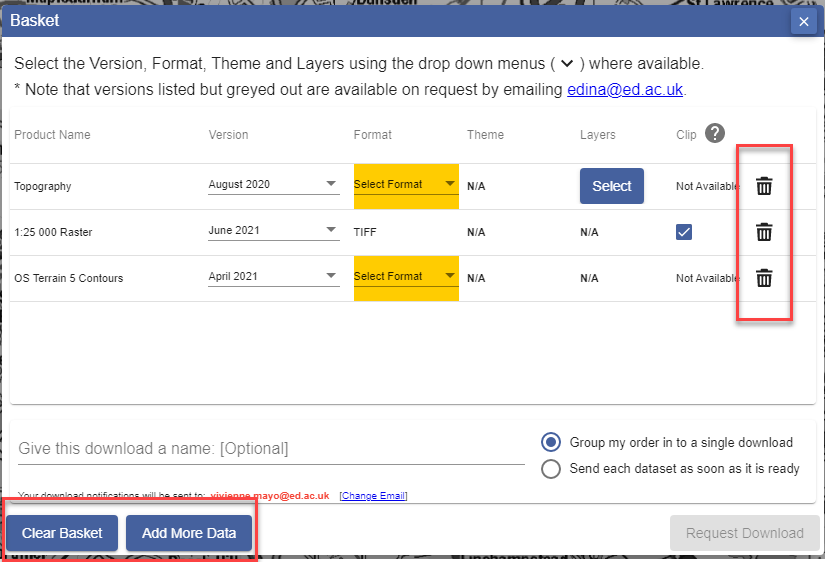

Basket layout

• There is a line for each map data product selected.
• Select Add More Data to go back and select more products.
• Select Clear Basket to remove all products from your basket.
• Use the dustbin icon to remove any single product from your basket.

Request Download

1. Select options for each data product.
2. Name your order (optional).
3. Select ‘group in single download’ or ‘send each dataset when ready.’

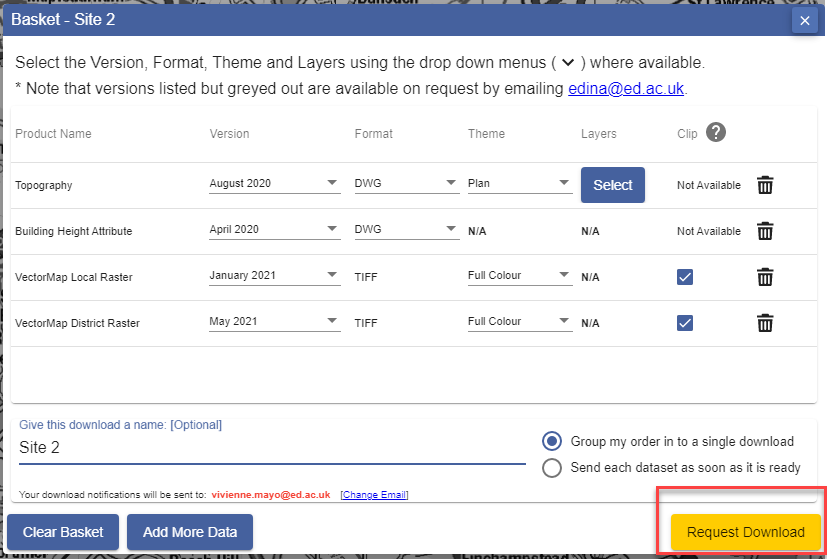

4. Select Request Download, found at the bottom right of the basket.
5. You will see a confirmation on screen.
6. You receive an order confirmation email from Digimap.
7. Next, you receive an order ready email.
8. Select the link in this email to download your data.

Product Options

Options vary between products and collections.

Version

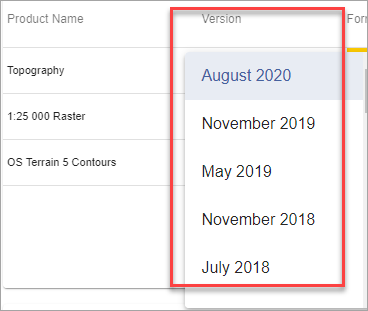

You may be able to select a version, which is typically a publication date.

Format

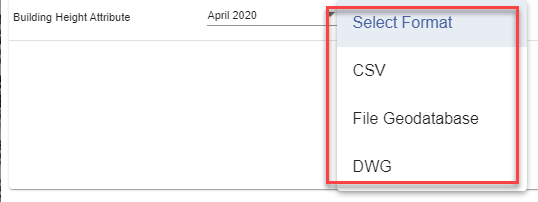

For vector data, there is often a choice of format. The image below shows the format choices for Ordnance Survey Building Heights data.

• If there a format option, you must select one.

Theme

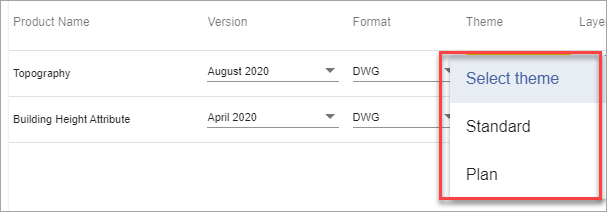

A theme is generally a cartographic style, e.g. for some formats of OS MasterMap®data you can choose between a Standard theme and a Plan theme.

In Historic Digimap, for maps predating the introduction of the National Grid, you are asked to choose between Original Sheets or National Grid tiles.

Layers

For some vector data products, you can choose which data layers to include in your order.

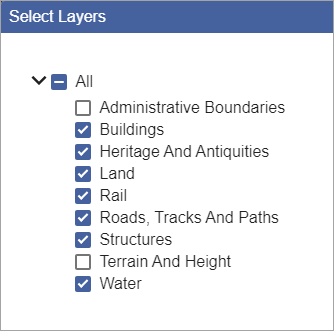

In the example image below, we have unchecked two boxes, so those layers will not be included in our order.

Clip

• Clip controls how your map data is extracted for your area.
• If the Clip option is available for a product, it is selected by default.
• You can deselect Clip if required.

What happens when Clip is selected? One of the following two scenarios:

Scenario 1 If the resulting clipped and merged dataset is less than 20,000 pixels in either direction and the selected area does not cover more than three tiles either horizontally or vertically then the data is clipped and merged in to a single dataset.

Data is clipped to the Minimum Bounding Rectangle (MBR) of the selected area that intersects each tile, not the exact shape drawn, and then merged together.

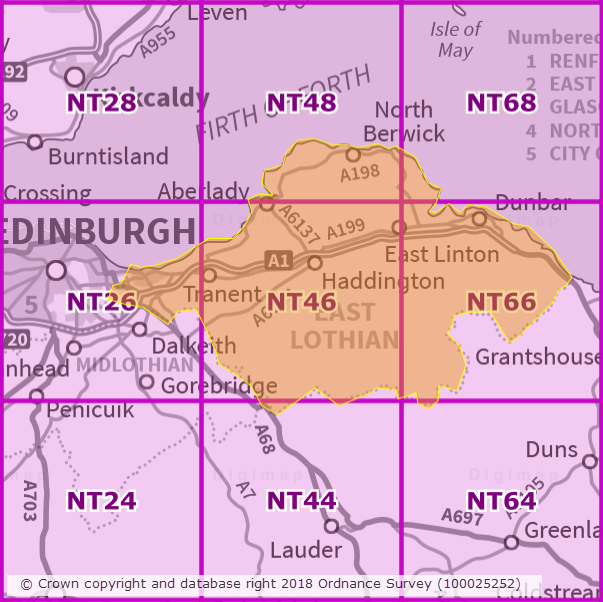

The images below show how the selected area is merged in to a single dataset and made available for download.

Scenario 2 If the resulting clipped and merged dataset is more than 20,000 pixels in either direction or the selected area covers more than three tiles either horizontally or vertically then the tiles are clipped to the Minimum Bounding Rectangle (MBR) of the selected area in each tile.

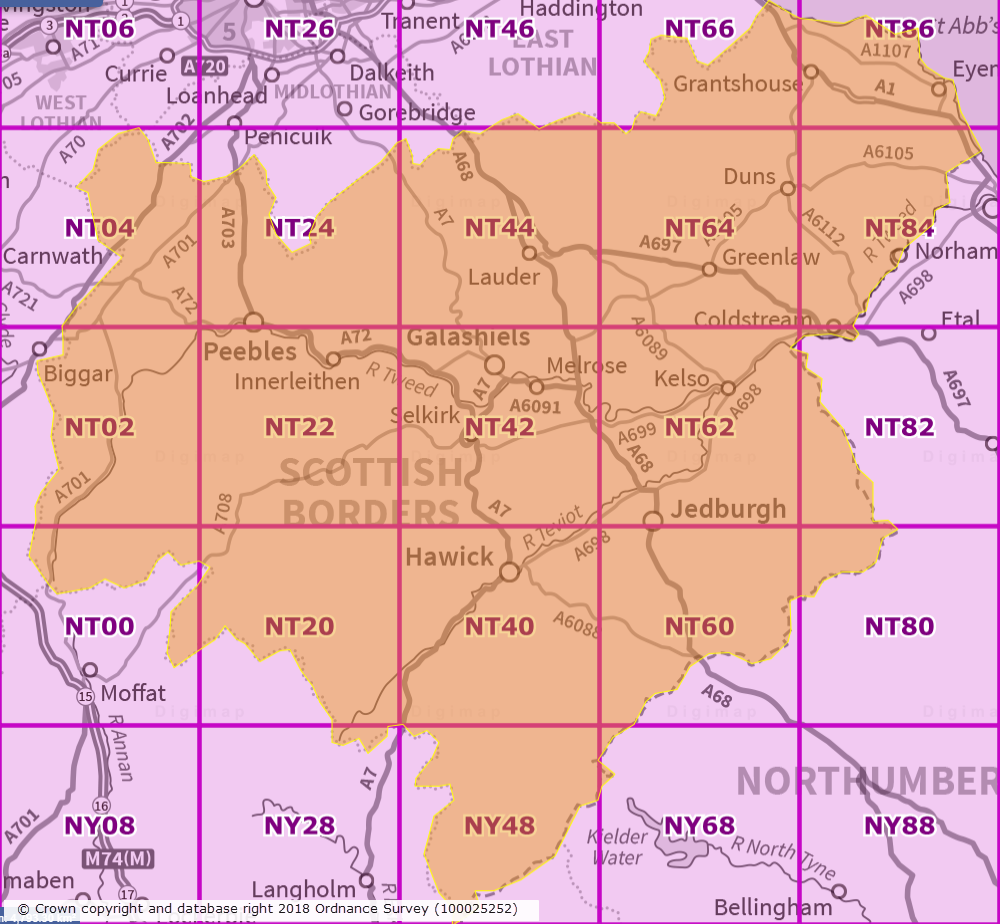

The images below show how each tile is clipped to the Minimum Bounding Rectangle (MBR) of the selected area that intersects each tile and provided separately.

What happens when Clip is not selected? You will be provided with all of the full data tiles that intersect your area. None of the data will be clipped or merged.

Help video

Select the image below or this text to view our short video.
