Step 2 Select Products

The second step is to add the data products you require to your Basket.

Select your products

1. Select the down arrow to the left of a category name to open it.
2. Check the box(es) next to any data product(s) you wish to order.
3. Continue opening categories and checking boxes.There is no limit to the number of data products you can select in any order.

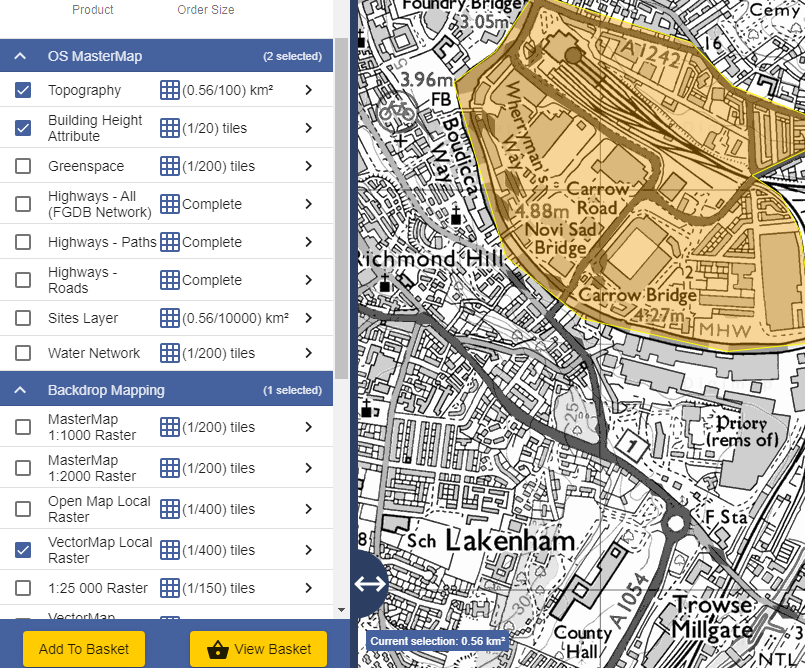

4. Select Add to Basket*, as shown in the image below.

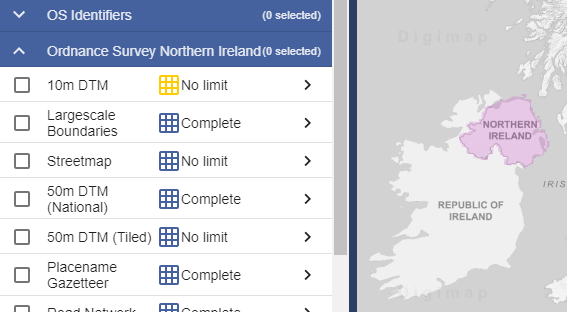

Coverage

If your selected data product does not cover your selected area, a warning message will appear on screen. You will need to select an alternative product or change area.

Download limits

1. If your area exceeds the download limit for any product, the product will be greyed out.
2. If you try to select it, an error message is displayed.
3. Select an alternative product or reduce the size of your area.

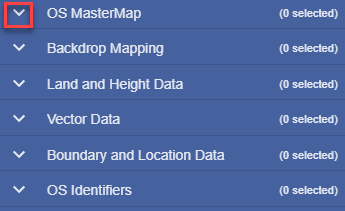

Browsing data products

Data products are presented in different categories.

1. Select the down arrow next to any category name.
2. A list of products in that category is visible.

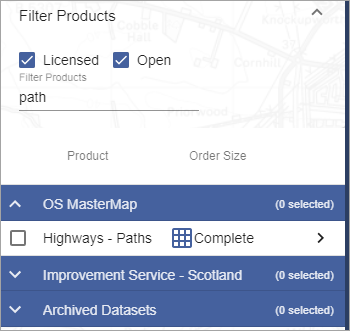

Filter list of products

You can filter the list to reduce the number of visible products.

1. Select the down arrow next to Filter Products.

2. Check the box(es) to filter either Licensed data, **Open data, or leave both checked.

3. Type a term where you see the text Filter Products, e.g. contours or paths. Note that the term(s) you use should be in the map data product name.

4. A smaller list will be presented, or the list will be blank if nothing matches your term.

Get data information

1. Select the arrow to the right of any data product name.
2. An information box opens with product details.

Check product coverage

Many of our map data products are available for the whole of Great Britain. Some only offer partial coverage. You can use the Availability Grid to help you determine the areas where data is available for download in each collection within Digimap. This tool helps you ensure that you do not expect to receive data for areas where it is not available. Not every data product is available for every area. However, please note the following important exceptions:

1. The availability grid is currently not functional for the Geology and Environment collections. Digimap is working on making the grid fully functional for all collections in the future.

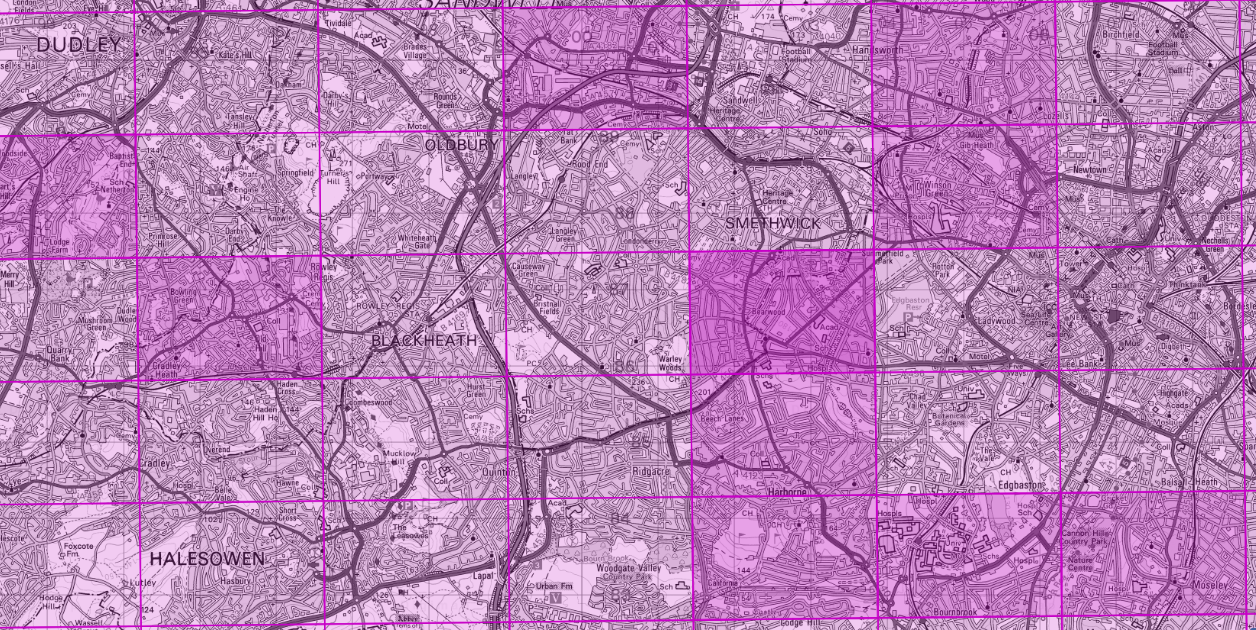

2. The Historic collection will show areas of overlapping data for the same data product. Since each County was mapped individually and County boundaries do not follow the regular shape of map sheets, there will be areas of overlap shown in the map sheet boundaries (as shown in the image below). You can read more about this in the table on our Help Pages.

How to Check Availability

1. Open the Download Data Tool within the collection you are exploring.
2. Beside the data you’d like to download, click on the icon with nine connected squares (the availability grid).
3. Areas covered by the data product are shaded on the map window.

Help video

Select the image below or this text to view our short video.
